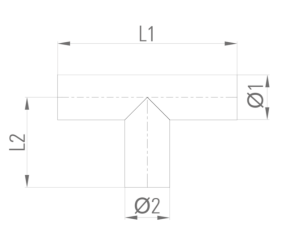

MAATVOERING T-stuk
Ø1 | Ø2 | t | L1 | L2 | |
---|---|---|---|---|---|
FS.T.038.15.038.15.CR | 38 | 38 | 1.5 | 200 | 100 |
FS.T.040.15.040.15.CR | 40 | 40 | 1.5 | 200 | 100 |
FS.T.045.15.045.15.CR | 44.5 | 44.5 | 1.5 | 200 | 100 |
FS.T.050.15.038.15.CR | 50 | 38 | 1.5 | 200 | 100 |
FS.T.050.15.040.15.CR | 50 | 40 | 1.5 | 200 | 100 |
FS.T.050.15.050.15.CR | 50 | 50 | 1.5 | 200 | 100 |
FS.T.060.15.045.15.CR | 60.3 | 44.5 | 1.5 | 200 | 100 |
FS.T.060.15.050.15.CR | 60.3 | 50 | 1.5 | 200 | 100 |
FS.T.060.15.060.15.CR | 60.3 | 60.3 | 1.5 | 200 | 100 |
FS.T.065.15.050.15.CR | 65 | 50 | 1.5 | 200 | 100 |
FS.T.065.15.065.15.CR | 65 | 65 | 1.5 | 200 | 100 |
FS.T.070.20.070.20.CR | 70 | 70 | 2.0 | 300 | 150 |
FS.T.076.20.050.15.CR | 76.1 | 50 | 2.0 | 300 | 150 |
FS.T.076.20.060.15.CR | 76.1 | 60 | 2.0 | 300 | 150 |
FS.T.076.20.076.20.CR | 76.1 | 76.1 | 2.0 | 300 | 150 |
FS.T.080.20.080.20.CR | 80 | 80 | 2.0 | 300 | 150 |
FS.T.084.20.084.20.CR | 84 | 84 | 2.0 | 300 | 150 |
FS.T.089.20.089.20.CR | 88.9 | 88.9 | 2.0 | 300 | 150 |
FS.T.100.15.100.15.CR | 100 | 100 | 1.5 | 300 | 150 |
FS.T.102.20.102.20.CR | 101.6 | 101.6 | 2.0 | 300 | 150 |
FS.T.104.20.104.20.CR | 104 | 104 | 2.0 | 300 | 150 |
FS.T.114.20.114.20.CR | 114.3 | 114.3 | 2.0 | 300 | 150 |
FS.T.129.20.129.20.CR | 129 | 129 | 2.0 | 300 | 150 |
