Stainless steel T-piece

Price on request

  • T-piece for material lines
  • Stainless steel, ø38 to ø129 mm
  • Wall thickness 1.5 and 2.0 mm
SKU: N/A Category:
Description

T-piece in stainless steel, ø38 to ø129 mm, wall thickness 1.5 and 2.0 mm. Step-free bore.

Installed with pipe couplings. More wear-resistant versions: hardened stainless steel and glass.

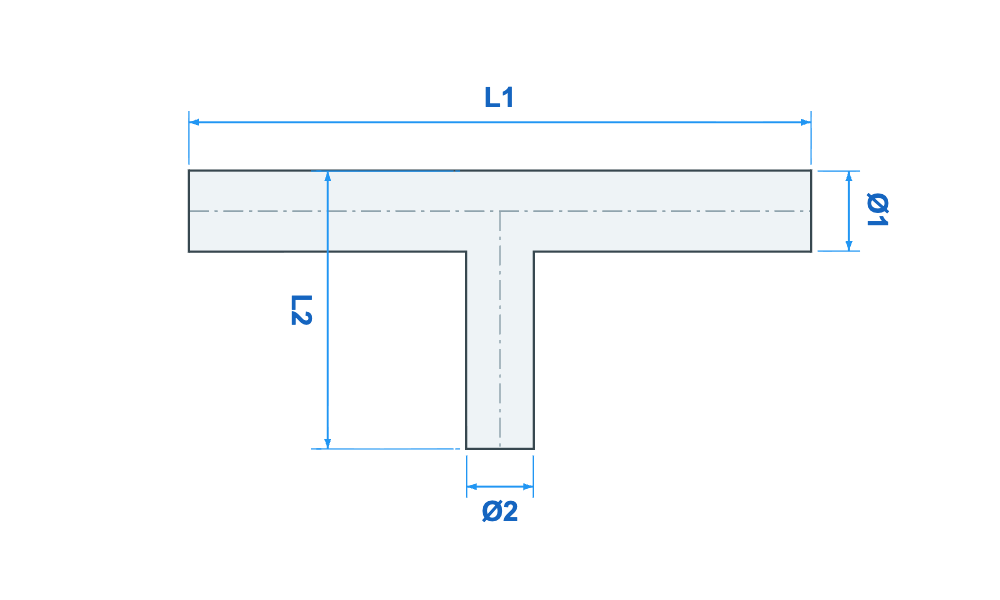

Dimension drawing of T-piece with L1, L2, ø1 and ø2

Item number ø1 (mm) ø2 (mm) Wall (mm) L1 (mm) L2 (mm)
TST-38-15-R 38 38 1,5 200 100
TST-40-15-R 40 40 1,5 200 100
TST-45-15-R 44,5 44,5 1,5 200 100
TST-50-15-R 50 50 1,5 200 100
TST-50-38-15-R 50 38 1,5 200 100
TST-50-40-15-R 50 40 1,5 200 100
TST-60-15-R 60,3 60,3 1,5 200 100
TST-60-45-15-R 60,3 44,5 1,5 200 100
TST-60-50-15-R 60,3 50 1,5 200 100
TST-65-15-R 65 65 1,5 200 100
TST-65-50-15-R 65 50 1,5 200 100
TST-70-20-R 70 70 2,0 300 150
TST-76-20-R 76,1 76,1 2,0 300 150
TST-76-50-20-R 76,1 50 2,0 300 150
TST-76-60-20-R 76,1 60,3 2,0 300 150
TST-80-20-R 80 80 2,0 300 150
TST-84-20-R 84 84 2,0 300 150
TST-89-20-R 88,9 88,9 2,0 300 150
TST-100-15-R 100 100 1,5 300 150
TST-102-20-R 101,6 101,6 2,0 300 150
TST-104-20-R 104 104 2,0 300 150
TST-114-20-R 114,3 114,3 2,0 300 150
TST-129-20-R 129 129 2,0 300 150
