Flexible silos

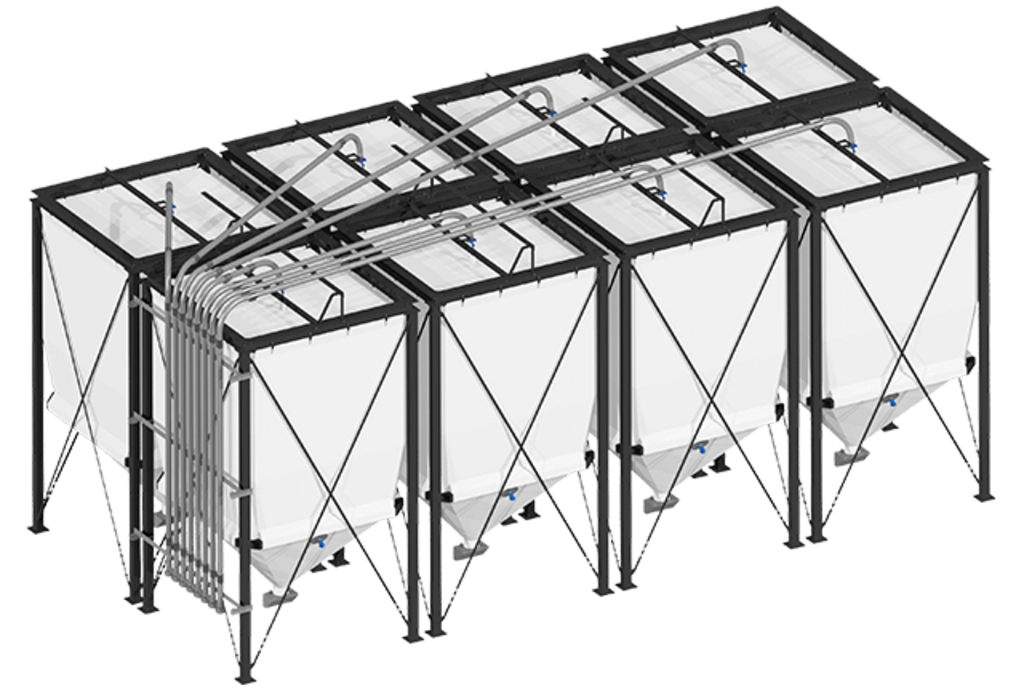

Flexible indoor silos with a steel frame and a bag of breathable polyester fabric, from 3 to 77 m³. For granules, regrind and grit; for powder with a coated fabric.
- Capacity 3 to 77 m³, up to 50 tonnes of granules as standard
- Footprint 1500 × 1500 to 4500 × 4500 mm
- On a level hall floor, without permit or silo foundation
- Breathable fabric that dissipates static charge, no condensation
- Can be dismantled and rebuilt in another place
Sizes
| Footprint (mm) | Capacity (m³) | Height (mm) |
|---|---|---|
| 1500 × 1500 | 3,0 t/m 6,6 | 2900 t/m 4900 |
| 2000 × 2000 | 5,1 t/m 15,3 | 2900 t/m 5900 |
| 2500 × 2500 | 7,1 t/m 25,6 | 2900 t/m 6400 |
| 3000 × 3000 | 18,5 t/m 31,8 | 4400 t/m 5900 |
| 3500 × 3500 | 29,0 t/m 55,7 | 4900 t/m 7400 |
| 4000 × 4000 | 42,3 t/m 77,2 | 5400 t/m 7900 |
| 4500 × 4500 | 50,5 t/m 76,8 | 5400 t/m 6900 |
The dimensions can be adapted to the floor area and the height of your hall. Larger silos up to 60 tonnes by arrangement.
Version
- Steel frame in RAL 9005, supplied as a kit with anchors
- Bag of tear-resistant, breathable polyester fabric that dissipates static charge
- Hopper 80°, outlet height approx. 600 mm
- Operating temperature up to 70 °C
Filling and discharge
- Filling from the bulk tanker through a filling line DN100 with Storz A coupling
- Filling from bags and big bags with a silo filling station
- Filling with a hopper loader on the silo roof
- Discharge through a suction box with 1, 2, 4 or 6 connections, for suction probes ø38 to ø84 mm
- Agitator for material that flows poorly
Options
- Level sensors for full and empty
- Weighing system with four load cells under the legs

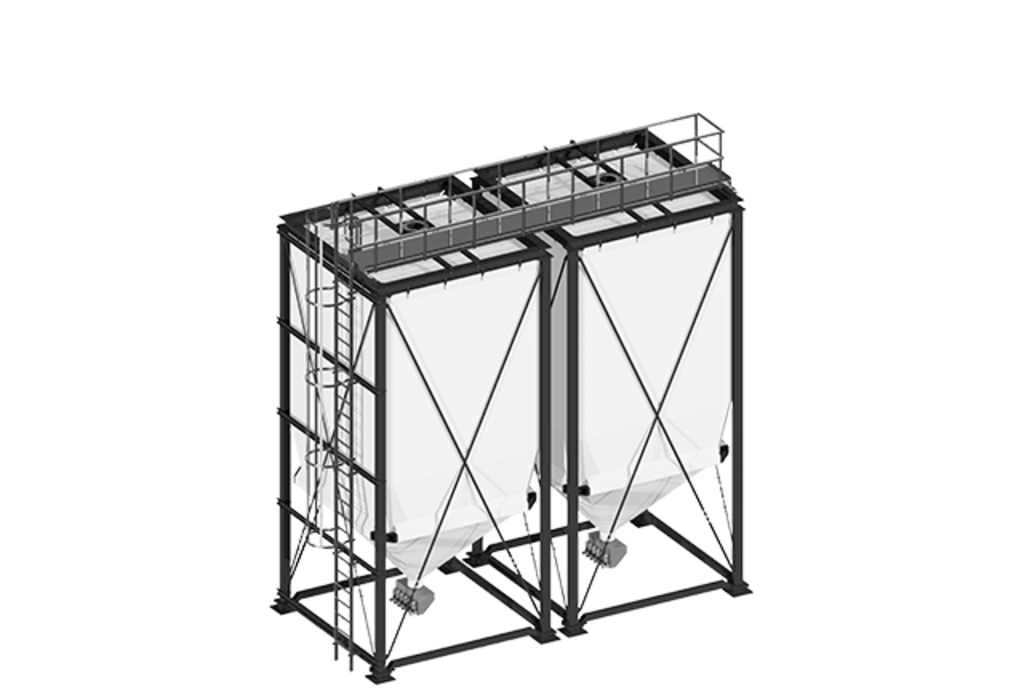

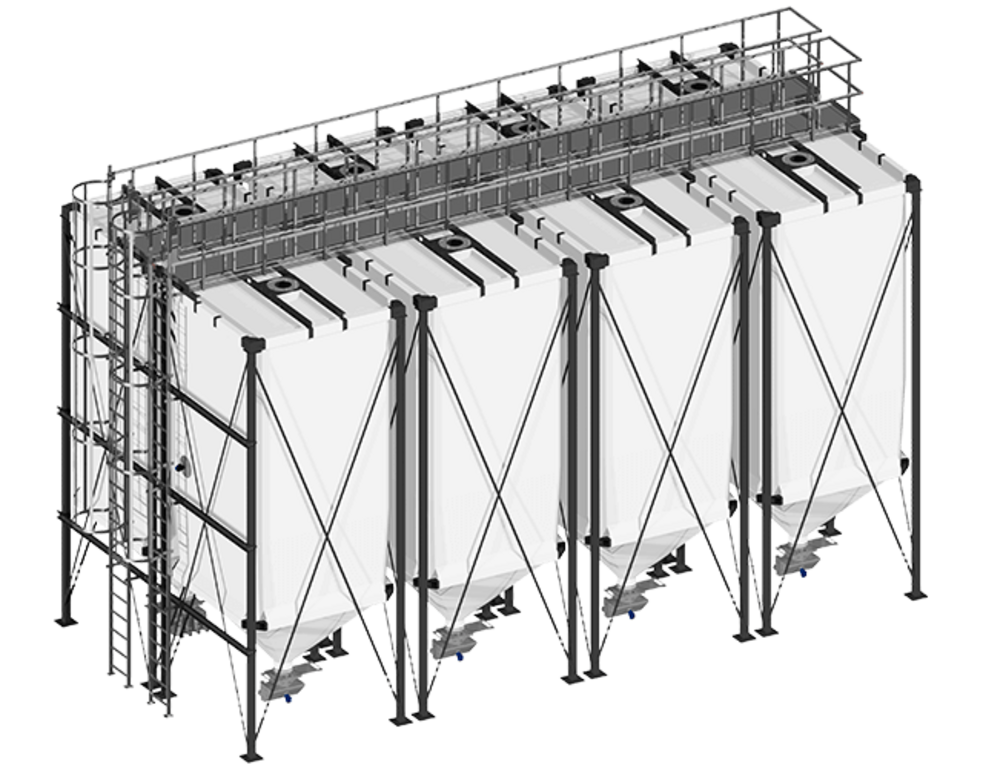

- Ladder with safety cage and walkway with railing
Request a quote
Please state the material, the required capacity and the available floor area and height of the hall.
"*" indicates required fields
Frequently asked questions about flexible silos
Does a flexible silo need a permit or a foundation?
No. The silo stands indoors on a level hall floor and is fixed with anchors. A permit and a silo foundation, as with an outdoor silo, are not needed.
Which materials is a flexible silo suitable for?
For granules, regrind and grit. For powder, a coated fabric or filter fabric is available.
Flexible silo or BM silo?
A flexible silo is made of fabric and always stands indoors. A BM silo is made of galvanised steel and can also stand outdoors.
