Modular BM silos
Square silos in galvanised steel, from 0.14 to 86 m³, as indoor or outdoor silo. Sebatec configures the silo to size; our own installation team builds it and connects it to your piping.
- Capacity 0.14 to 86 m³, footprint from 1050 × 1050 mm
- Height 1.27 to 14 m
- All parts fit through a standard doorway
- Cone 45° or 60°
- For plastic granules, regrind, grains and flour up to 900 kg/m³
- More than 50 silos installed by our own installation team
Four versions
| Version | Footprint (mm) | Capacity and height |
|---|---|---|

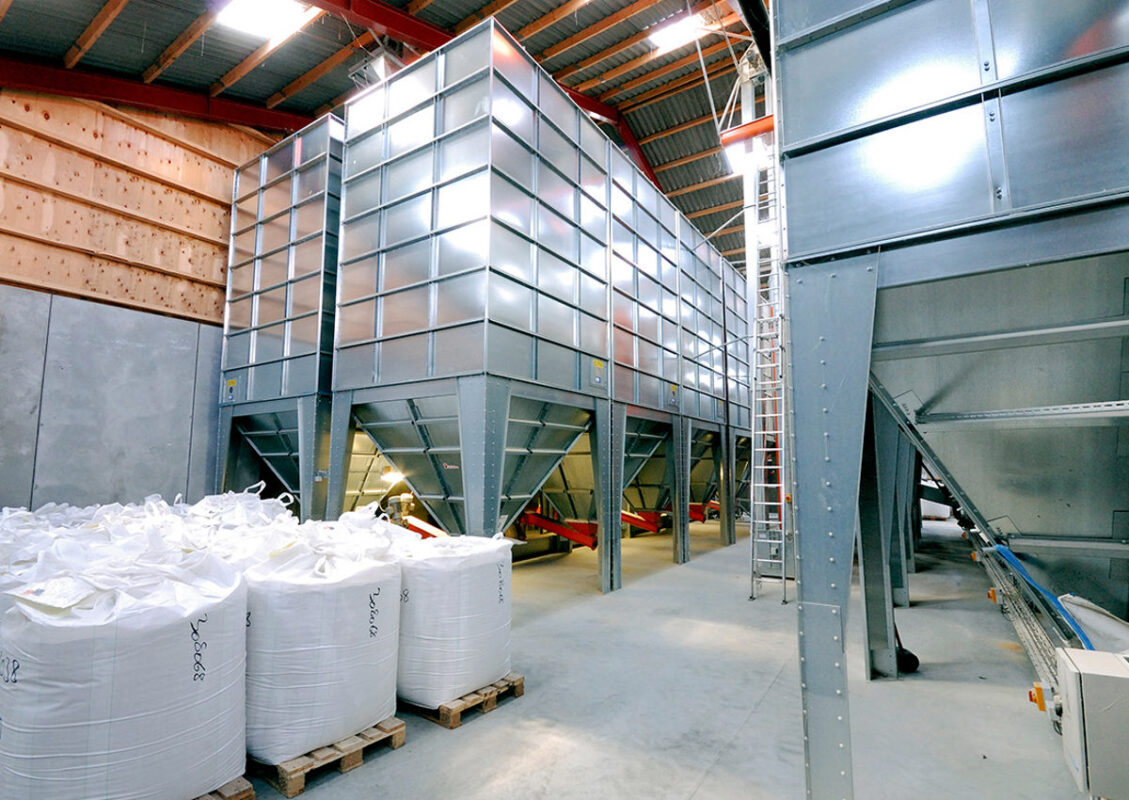

| Modular The standard indoor silo |
1050 × 1050 t/m 3546 × 3546 | 0,14 t/m 86 m³ 1,27 t/m 12,40 m |
| HD Modular Cone 60° without internal stiffeners |
2700 × 2700 en 3140 × 3140 | 4,2 t/m 65 m³ 2,56 t/m 9,87 m |

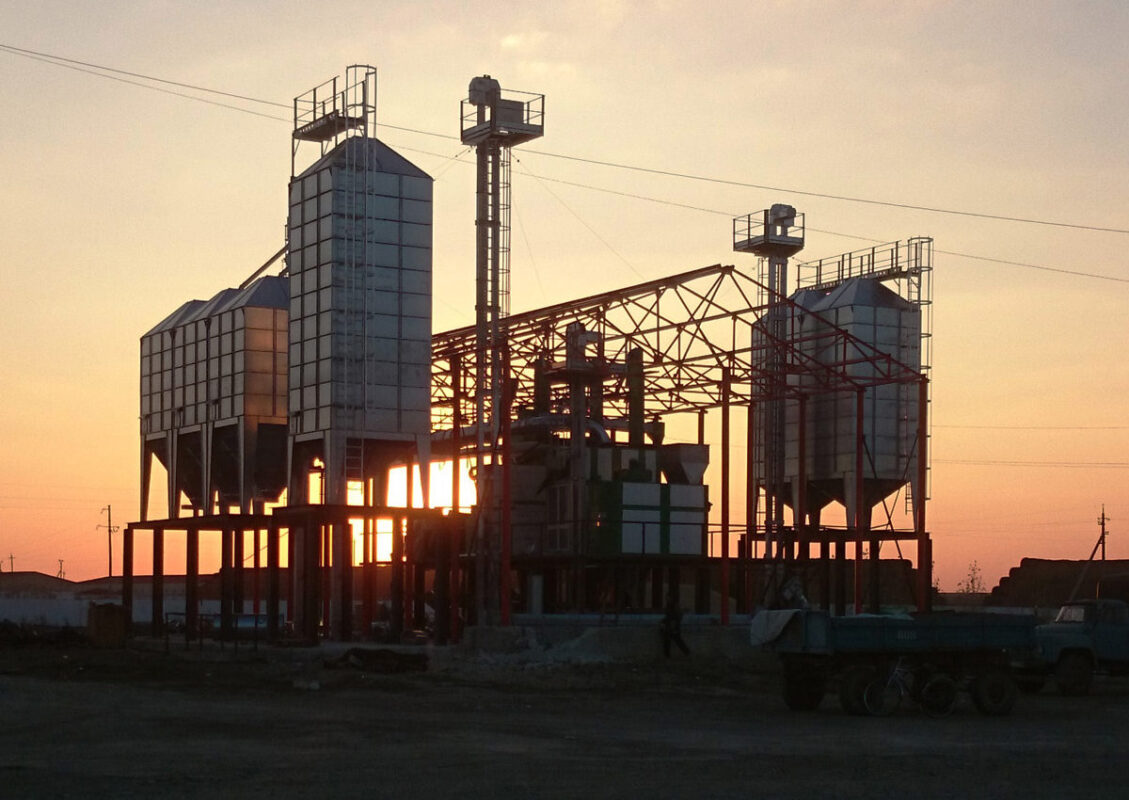

| Outdoor Modular Outdoor silo with sealed panels, roof 45° with cyclone and filling line, also in stainless steel |
2550 × 2550 en 3000 × 3000 | 4,9 t/m 85 m³ 2,95 t/m 14,13 m |

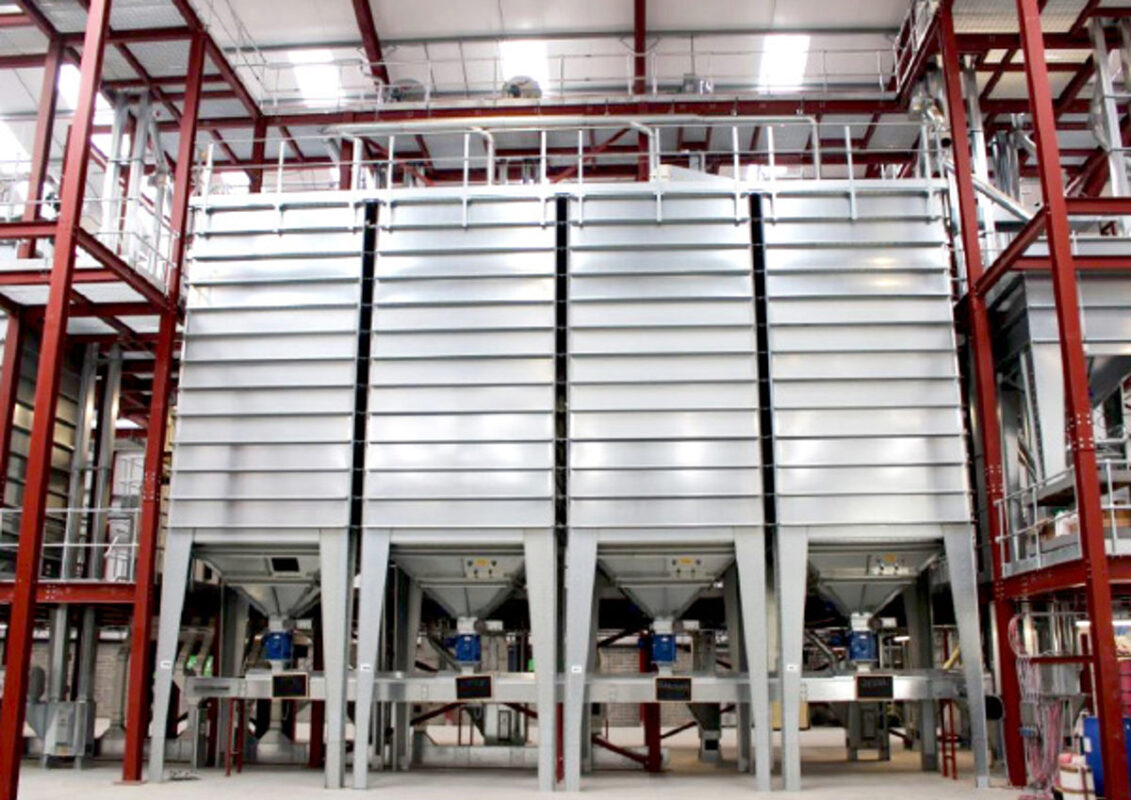

| Clean Without internal stiffeners, bolts on the outside, empties completely |
1080 × 1080 t/m 3147 × 3147 | 0,25 t/m 67 m³ 1,25 t/m 10,68 m |
Also available: silos for minerals and powders and silos with auger outlet.
Modular silo sizes
| Footprint (mm) | Height (m) | Capacity (m³) |
|---|---|---|
| 1050 × 1050 | 1,27 t/m 5,04 | 0,14 t/m 3,40 |
| 1300 × 1300 | 1,39 t/m 5,04 | 0,18 t/m 4,56 |
| 1550 × 1550 | 1,57 t/m 5,34 | 0,50 t/m 8,24 |
| 2050 × 2050 | 1,80 t/m 10,88 | 1,23 t/m 35,56 |
| 2550 × 2550 | 2,05 t/m 12,02 | 2,45 t/m 60,91 |
| 3000 × 3000 | 2,06 t/m 12,40 | 4,06 t/m 86,35 |
| 3546 × 3546 | 2,71 t/m 9,64 | 6,40 t/m 80,10 |
Version and options
- Galvanised steel panels, resistant to high-pressure cleaning
- Cone 45°: outlet 300 × 300 mm with one slide gate
- Cone 60°: outlet 500 × 500 mm with two slide gates
- Leg length can be adapted to the required outlet height
- Standard: inspection hatch with viewing window, manual slide gate and steel cover
- Options: filling line with filter, reinforced cover, railings, level sensors, load cells with display and vibrators
- CE marked, manufactured in accordance with EN 1090
Custom silo, supplied and installed
Sebatec configures the silo by capacity, available space and height. Our own installation team has installed more than 50 BM silos, in the Netherlands, Belgium, Germany and Norway. It builds the silo and connects it: filling line, suction, level measurement and the piping to your machines. Filling from bags or big bags is possible with a silo filling station.
Request a quote
Please state the material, the required capacity, the available height and whether it is for indoor or outdoor installation.
"*" indicates required fields
Frequently asked questions about BM silos
Does a BM silo fit in an existing building?
Yes. All parts fit through a standard doorway and the silo is assembled on site, in 3.5 to 42 hours with two people, depending on the size.
Which materials is a BM silo suitable for?
For dry, free-flowing bulk goods up to 900 kg/m³: plastic granules, regrind, grains and flour. Not for sand or other heavy materials.
When do I choose a 60° cone?
For material that flows poorly. The 45° cone is for material that flows well.
