Standard coupling station

Configure your coupling station here

Coupling station with steel frame and stainless steel manifold, for 4 to 16 inlets and 2 to 6 outlets, with Camlock, Twist or without quick couplings.

• The layout can only be chosen with 8 inlets and 3 outlets; in two rows the station is narrower.
• The manifold spacing follows the diameter. With Twist in ø40 or ø50, you can choose 100 or 150 mm.
• For abrasive material the manifold is available in hardened stainless steel; the 45° inlet wears first.

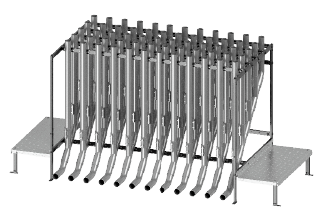

• You can add a step platform with an aluminium chequer plate tread: along the operator side with 4 to 12 inlets and a manifold spacing of 100 or 150 mm, or at the side of the frame with 5 or 6 outlets. Other sizes on request.

Specifications

• Steel frame, powder-coated in RAL 9005 jet black
• Stainless steel manifold, hardened on request
• Pipe diameter ø40, ø50, ø60.3 or ø76.1 mm
• Manifold spacing 100, 150 or 180 mm, depending on diameter and coupling
• Supplied fully assembled

Is your layout not listed?

Almost any layout can be built: a different number of lines, different numbers of outlets per line, an inlet in hardened stainless steel or glass, or couplings with RFID. Send us your situation and we will draw it up.
