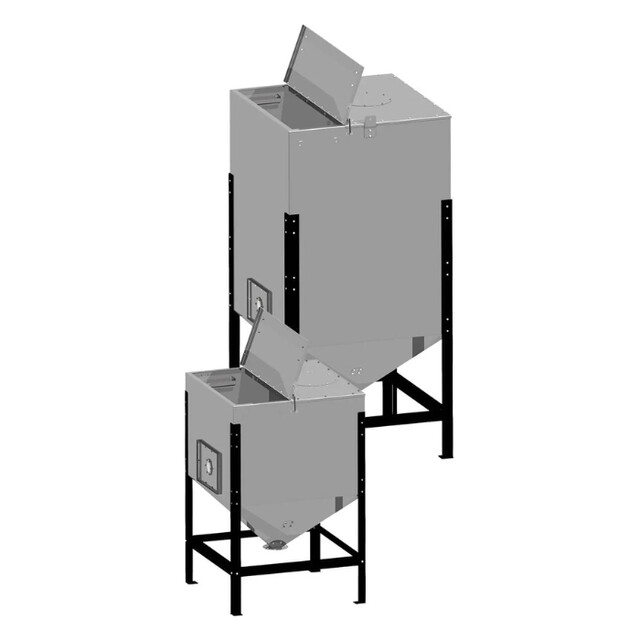

Day bin 1000 to 4800 litres
Price on request
- 1000 to 4800 litres, aluminium or stainless steel
- Hinged lid with soft-close, inspection hatch 450 × 300 mm
- Prepared for hopper loader, low-level and high-level sensor
Description
Day bin in aluminium or stainless steel, 1000 to 4800 litres, for emptying 25-kg bags into or for filling with a hopper loader mounted on top.
Specifications
- 4 steel feet RAL 9005, ground clearance 400 mm
- Hinged lid with soft-close
- Openings for hopper loader, low-level sensor and high-level sensor, closed with a plate
- Inspection hatch 450 × 300 mm with cover
- Support rim for grid, hopper 90°
Accessories: grid, lid lock 24 V DC, adapter plate for hopper loader, suction box with 1, 2, 4 or 6 connections for suction probes ø38 to ø84 mm (choose above), low-level and high-level sensor, signal lamp and weighing system.
Sizes
| Capacity (l) | Dimensions (mm) |
|---|---|
| 1000 | 1200 × 1200 |
| 1500 | 1200 × 1200 |
| 2000 | 1200 × 1200 |
| 2000 | 1500 × 1500 |
| 2500 | 1500 × 1500 |
| 3000 | 1500 × 1500 |
| 4000 | 1500 × 1500 |
| 4800 | 1500 × 1500 |
Goes with suction probes · hoses
Alternatives day bin 300 to 750 litres
Additional information
| Capacity | 1000 litres, 1500 litres, 2000 litres (1200 × 1200 mm), 2000 litres (1500 × 1500 mm), 2500 litres, 3000 litres, 4000 litres, 4800 litres |
|---|---|
| Material | Aluminium, Stainless steel |
| Suction box | No suction box, 1 connections, 2 connections, 4 connections, 6 connections |
| Connection | Not applicable, ø38 mm, ø40 mm, ø45 mm, ø50 mm, ø60 mm, ø76 mm, ø84 mm |
