Stainless steel Y-piece 30°

Price on request

Y-piece 30° in stainless steel, ø38 to ø154 mm, wall thickness 1.5 and 2.0 mm. Step-free bore.

Installed with pipe couplings. More wear-resistant versions: hardened stainless steel and glass.

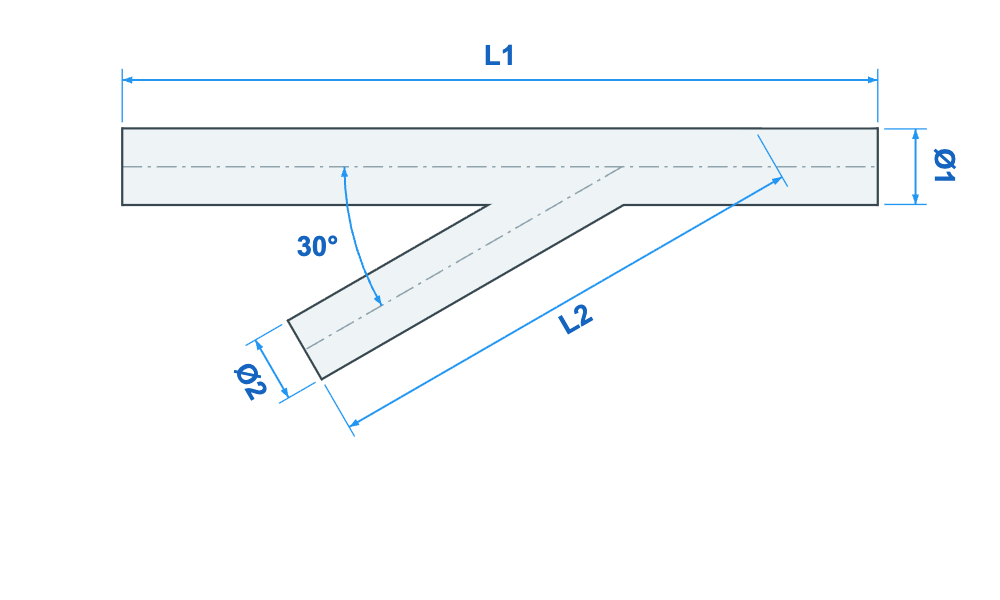

Dimension drawing of Y-piece 30° with L1, L2, ø1 and ø2

Item number	ø1 (mm)	ø2 (mm)	Wall (mm)	L1 (mm)	L2 (mm)
YST-30-38-15-R	38	38	1,5	300	200
YST-30-40-15-R	40	40	1,5	300	200
YST-30-45-15-R	44,5	44,5	1,5	300	200
YST-30-50-15-R	50	50	1,5	300	200
YST-30-60-15-R	60,3	60,3	1,5	300	200
YST-30-60-50-15-R	60,3	50	1,5	300	200
YST-30-60-45-15-R	60,3	44,5	1,5	300	200
YST-30-65-15-R	65	65	1,5	400	300
YST-30-70-20-R	70	70	2,0	400	300
YST-30-70-50-20-R	70	50	2,0	300	190
YST-30-76-20-R	76,1	76,1	2,0	400	300
YST-30-80-20-R	80	80	2,0	400	300
YST-30-84-20-R	84	84	2,0	400	300
YST-30-89-20-R	88,9	88,9	2,0	450	350
YST-30-100-15-R	100	100	1,5	450	350
YST-30-102-20-R	101,6	101,6	2,0	450	350
YST-30-104-20-R	104	104	2,0	450	350
YST-30-108-20-R	108	108	2,0	450	350
YST-30-114-20-R	114,3	114,3	2,0	450	350
YST-30-129-20-R	129	129	2,0	450	350
YST-30-154-20-R	154	154	2,0	640	490
