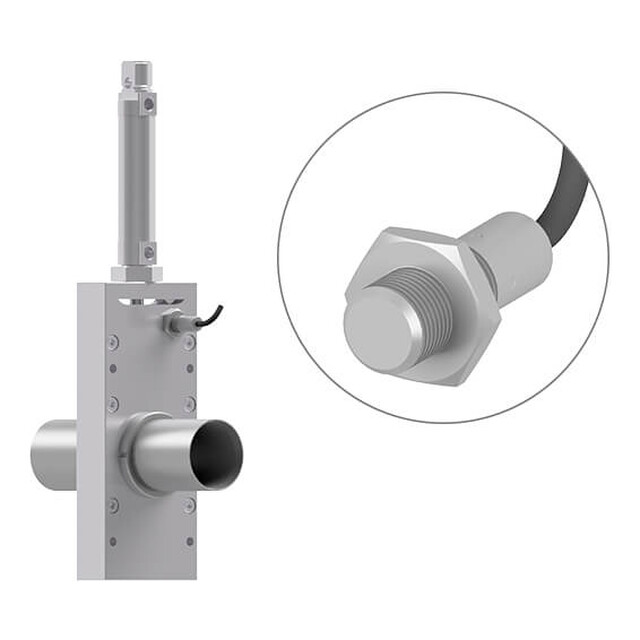

Position sensor for slide gate valve
Price on request
- Reports the position of the slide to the control system
- One sensor per slide gate valve, supplied loose
Description
Position sensor for the slide gate valve. The sensor reports the position of the slide to the control system. Choose it as an option with the slide gate valve; one sensor is needed per slide gate valve.
Specifications
- Switching contact NO
- Supply voltage 10 to 30 V DC, max. 150 mA
- Ambient temperature −5 to +40 °C
- Protection class IP67
- Cable 2 m, three cores
- Supplied loose, not fitted
