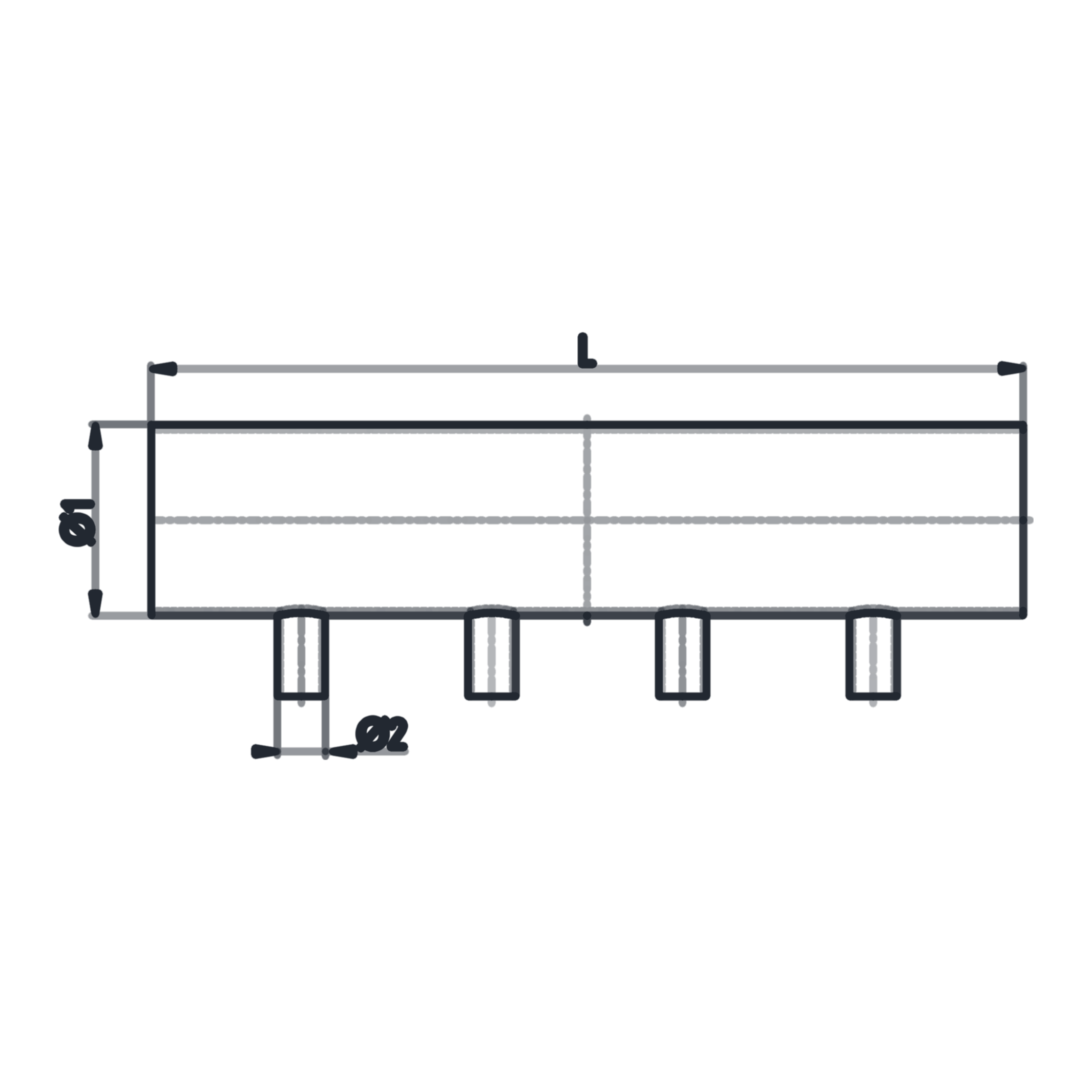

T-stuk 4- en 5-voudig, schets
T-piece with 4 connections, dimension sketch for central vacuum
T-stuk 2-voudig, schets
Aluminium T-piece with 2 connections Price on request
Back to products
T-stuk, schets
Aluminium T-piece Price on request

Aluminium T-piece with 4 or 5 connections

Price on request

  • Aluminium
  • Main line ø100, ø150, ø200 mm
  • Connection ø50, ø60, ø60.3 mm
SKU: N/A Category:
Description

Aluminium T-piece with four or five connections for hopper loaders, for the main line of a central vacuum system.

Main line ø1 (mm) Connection ø2 (mm) Length L (mm) Connections
100 50 915 4
150 50 915 4
150 60 915 4
200 50 915 4
200 60 915 4
100 60,3 1115 5
Additional information
Sizeø100, connection ø50 (4 connections), ø150, connection ø50 (4 connections), ø150, connection ø60 (4 connections), ø200, connection ø50 (4 connections), ø200, connection ø60 (4 connections), ø100, connection ø60.3 (5 connections)
