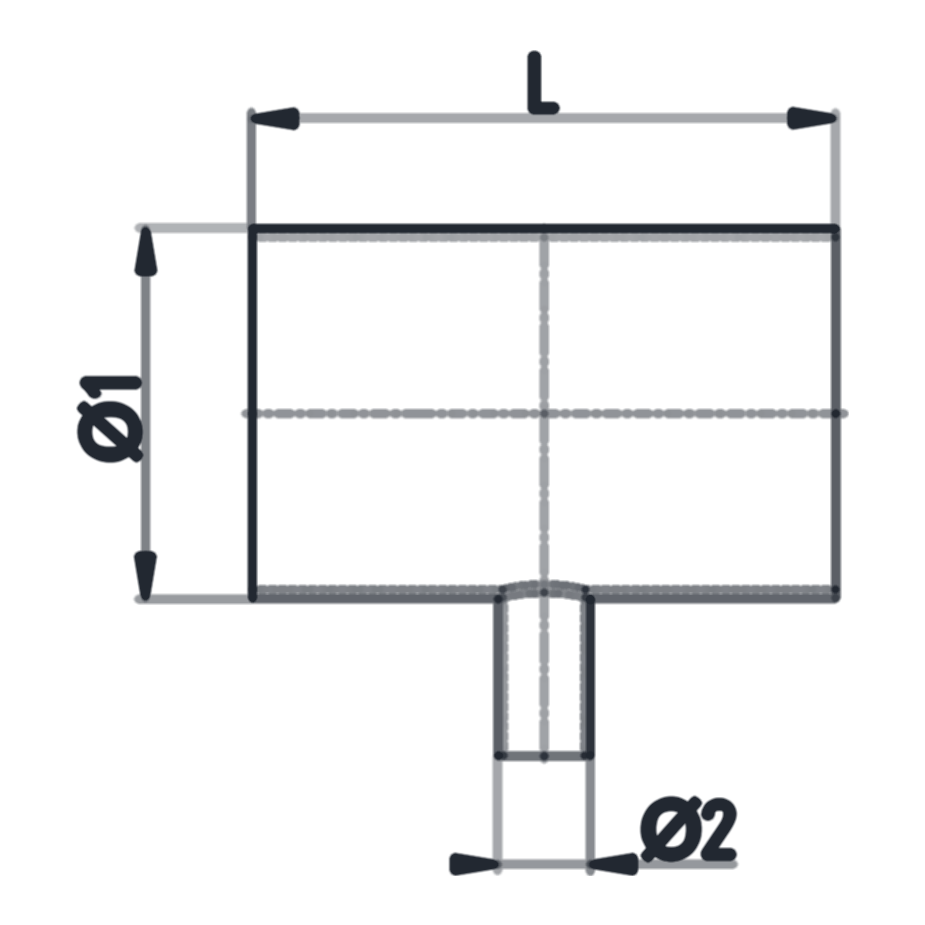

T-stuk 1-voudig, schets
T-piece with 1 connection, dimension sketch for central vacuum
Heavy Duty pipe coupling with white seal
Heavy Duty pipe coupling ø300 Price on request
Back to products
T-stuk 2-voudig, schets
Aluminium T-piece with 2 connections Price on request

Aluminium T-piece with 1 connection

Price on request

  • Aluminium
  • Main line ø100, ø150, ø200, ø300 mm
  • Connection ø50, ø60, ø100, ø200 mm
SKU: N/A Category:
Description

Aluminium T-piece with one connection for a hopper loader, for the main line of a central vacuum system.

Main line ø1 (mm) Connection ø2 (mm) Length L (mm)
100 50 315
100 60 315
150 50 315
150 60 315
150 100 315
200 50 315
200 60 315
200 100 315
300 100 550
300 200 550
Additional information
Sizeø100, connection ø50, ø100, connection ø60, ø150, connection ø50, ø150, connection ø60, ø150, connection ø100, ø200, connection ø50, ø200, connection ø60, ø200, connection ø100, ø300, connection ø100, ø300, connection ø200
